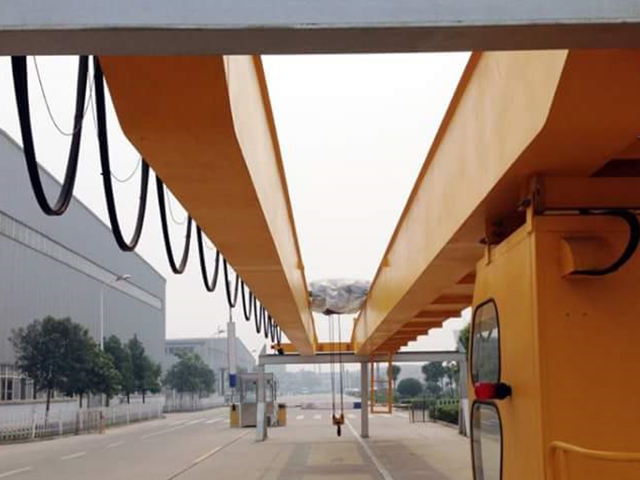

Double Girder EOT Cranes

Features :

• Double Girder, Electric Operated and Hand Operated type overhead traveling cranes
• Design and manufactured in compliance to IS 807 & IS 3177 for different applications to appropriate class & duty. Hoist / Crab machinery designed in compliance to IS 3938

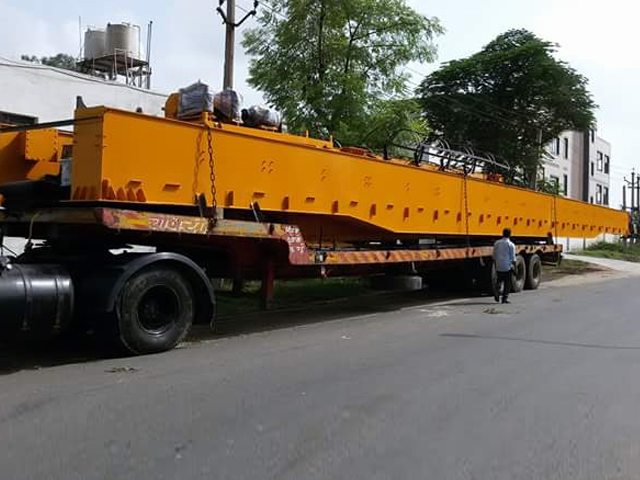

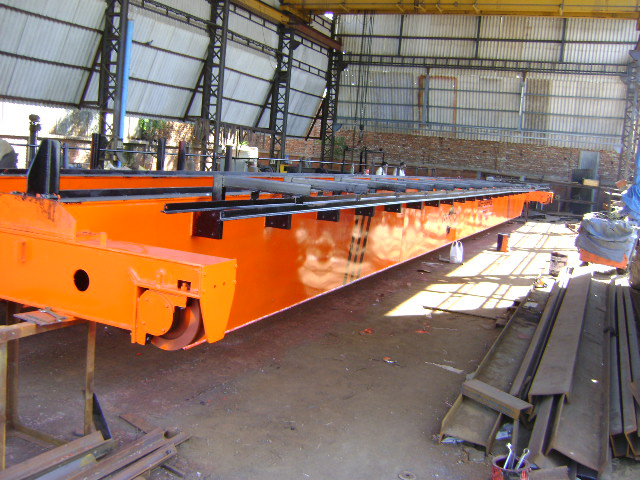

• The Bridge Girders are plate welded box type designed to sustain all stresses arising due to vertical and lateral forces with impact
• The End Carriages are fabricated from rolled steel section with suitable diaphragms & stiffeners to give strong construction. Rubber buffers are provided on both sides of end carriages to absorb jerks
• The Gear Boxes are made of accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication
• Twin drive arrangement will be provided for Long Travel motion which contains motors, gear boxes, brakes etc. coupled together
• The crane duty Electric Motors as per IS 325 are suitable for frequent starting, reversing & braking. Motors are foot / flange mounted TEFC / TESC, Sq. cage / Slip ring induction type for hoisting, C.T. and L.T. motion
• Fail to safe Electromagnetic / Electro hydraulic thruster type brakes are provided for hoisting, C.T. & L.T. motion
• Safety Limit Switches for stoppers are provided to prevent over hoisting and traveling
• End Stoppers are provided on either side of the bridge to limit the cross travel motion of the hoist/ crab
• M.S. chequered plate / anti-skid plate platform is provided for full length on one side of the bridge girde
• The Control Panel consists of contactors, overload relay, fuses, transformers etc.
• The crane is suitable to operate on power supply of 415 V, 50 Hz, 3 Phase, A.C.
• The operation of the crane is controlled from suspended pendent push button station / remote control
• The structural parts of the cranes are thoroughly cleaned and are applied with one coat of red oxide and two coats of enamel paints before dispatch
